Welcome to Our DURAVOLTA – The Revolution in Polypropylene
Innovative halogenfree and Flame-Retardant Material according UL94, class 0
DURAVOLTA is a newly developed, halogenfree, and flame-retardant polypropylene, made in Germany. It offers an ideal alternative to well-known materials in the industry.
Unique Properties and Certifications
DURAVOLTA combines unique properties and meets the stringent standards of Underwriters Laboratories, Inc., classified with UL 94 V-0 and UL 94 VTM-0. This material is not only powerful but also environmentally friendly.
Think GREEN!
Use DURAVOLTA and gain a competitive advantage! It is a halogen-free material according to IEC 61249-2-21 with outstanding thermal and electrical insulation properties.
Technical Advantages of DURAVOLTA
DURAVOLTA offers a variety of technical advantages, including:
- Halogen-free according to IEC 61249-2-21
- Outstanding RTI el of 120°C according to UL 746B
- Excellent electrical insulation values
- Non-hygroscopic
- High resistance to acids and alkalis
- Easy to process into 3D parts
- High dimensional stability
- Very good price-performance ratio

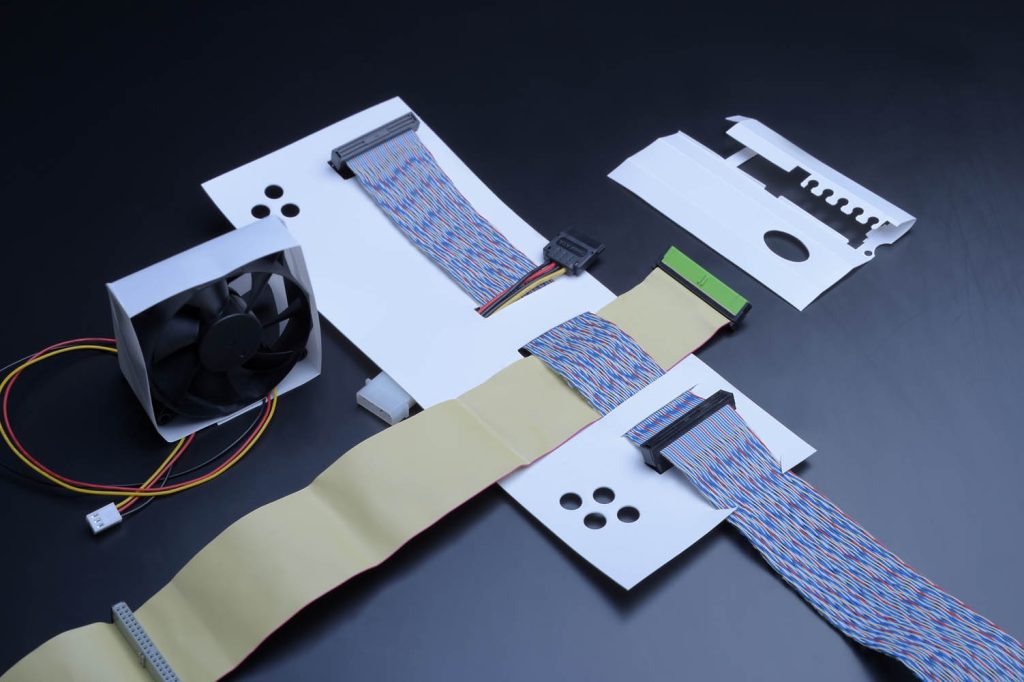

Applications of DURAVOLTA
Due to its ease of processing and the ability to create 3D shapes, DURAVOLTA has gained acceptance in numerous areas:
- Computers and computer parts
- Electrical and power distribution systems
- Telecommunication equipment and accessories
- Conventional and uninterruptible power supply
- Fire protection
- Filler plates / air baffles in server towers
- Electrical machine controls, converters, servo controls
- Lamps (especially LED)
- Automotive components
- Battery charging stations and battery storage systems
- Consumer electronics (TVs, receivers, game consoles)
- Medical electrical devices
. Detailed Technical Data
DURAVOLTA is a flame-retardant polypropylene with exceptional properties, tested and listed in the database of Underwriters Laboratories, Inc.
Technical Values:
- Tensile Strength: ISO 527-2, N/mm², ≥ 18
- Elongation at Break: ISO 527-2, %, ≥ 50
- Impact Strength: ISO 179, 23°C, kJ/m², ≥ 30
- Notched Impact Strength: ISO 179, 23°C, kJ/m², ≥ 1.5
- Flexural Modulus: ISO 178, N/mm², ≥ 2200
Outstanding Properties:
- Halogen-free according to IEC 61249-2-21
- Flame-retardant according to UL94 V0/VTM0
- RTI el = 120°C
- CTI = PLC 0 (> 600 V)
- Dielectric Strength = 43 kV/mm
. Our Product Range
DURAVOLTA is available in various formats to meet your specific needs:
Duravolta 10: 0.10 mm (.004), rolls 610 mm wide (24 in)
Duravolta 12: 0.125 mm (.005), rolls 610 mm wide (24 in)
Duravolta 25: 0.25 mm (.010), rolls 610 mm wide (24 in)
Duravolta 42: 0.43 mm (.017), rolls 610 mm wide (24 in)
Duravolta 76: 0.76 mm (.030), 2 meter x 1 meter sheets (78.7 in x 39.4 in)
Duravolta 100: 1.00 mm (.039), 2 meter x 1 meter sheets (78.7 in x 39.4 in)
Different sizes and thicknesses possible and on demand !
Additionally, we offer sheet goods up to 100 mm thick, roll goods up to 0.72 mm thick, as well as granulate and finished parts (stamped, milled, and thermoformed parts).
. Processing Options

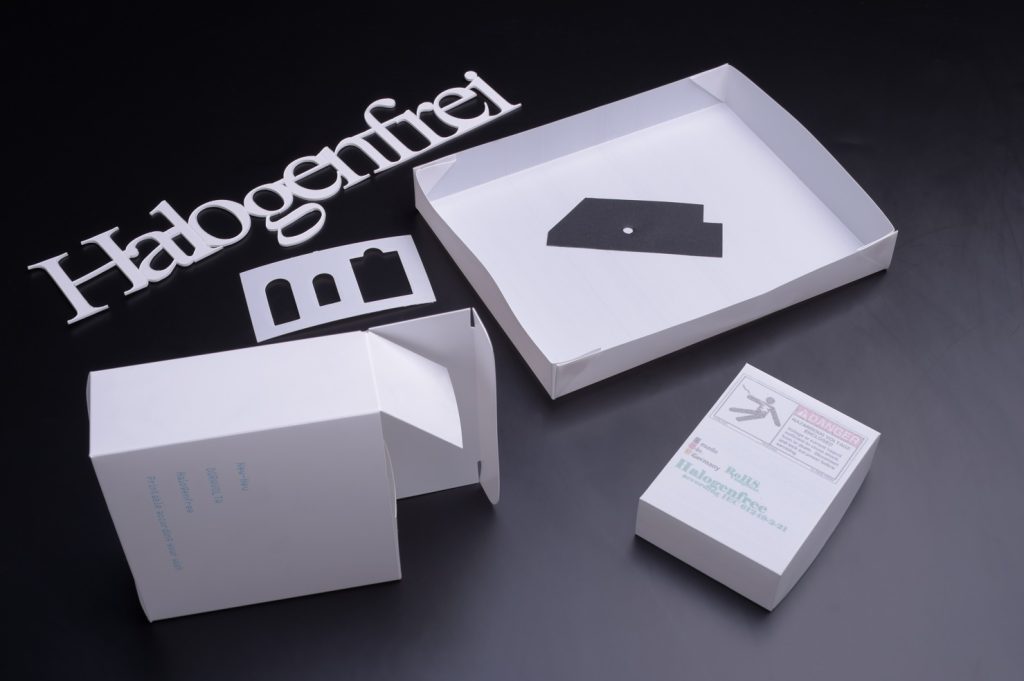

DURAVOLTA is mainly supplied as rolls and sheets and can be easily converted into 2D and 3D finished parts
The processing options include
Punching/Cutting:
- Flatbed or rotary punching

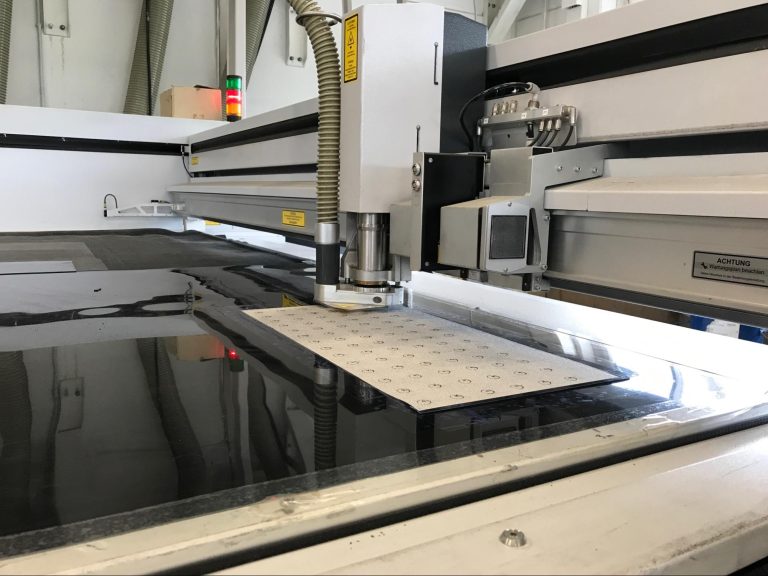

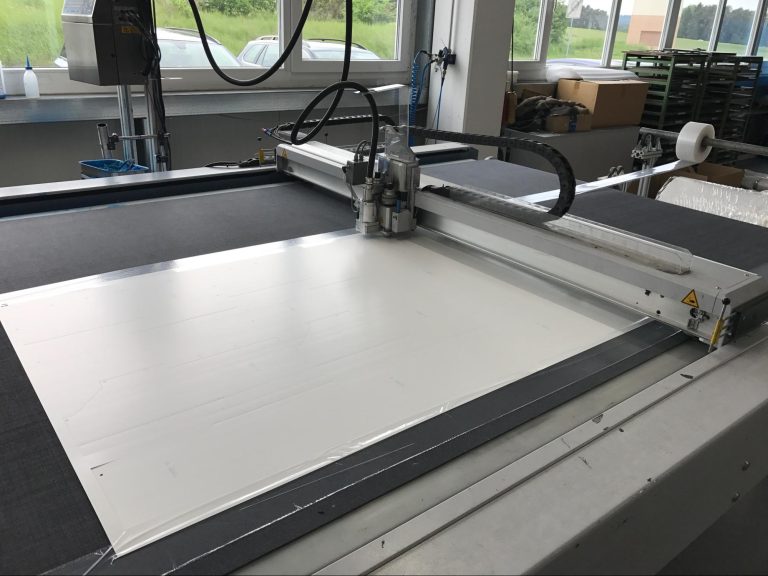

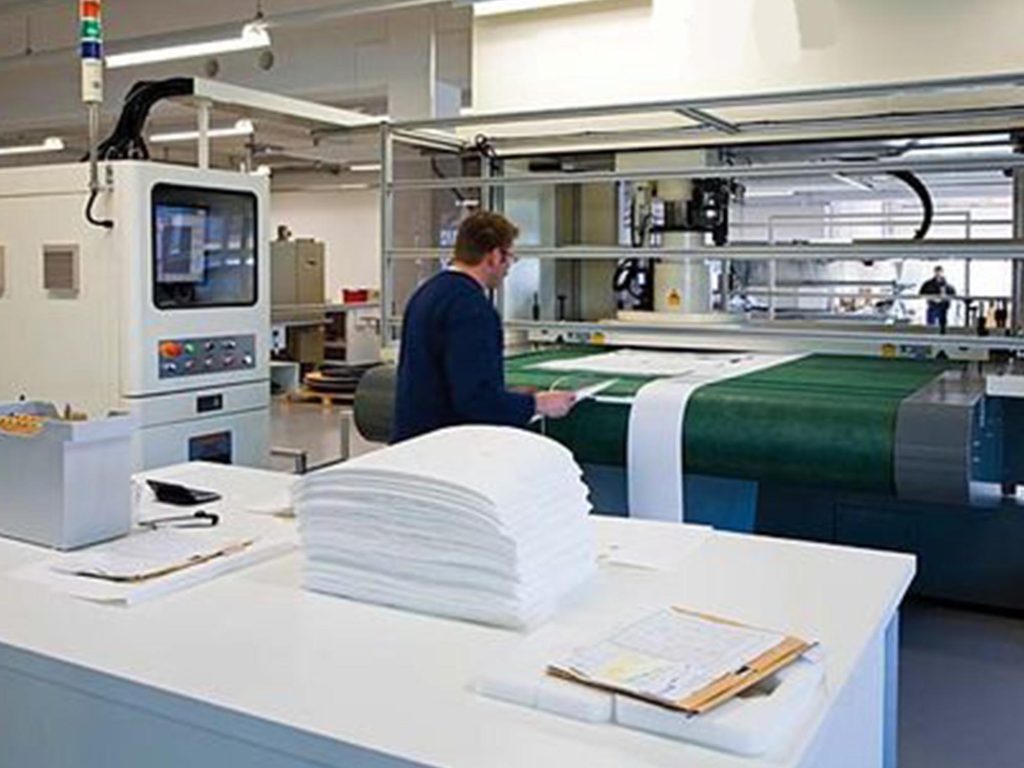

- CNC cutting table
- CNC laser or water jet cutting
Milling with a CNC

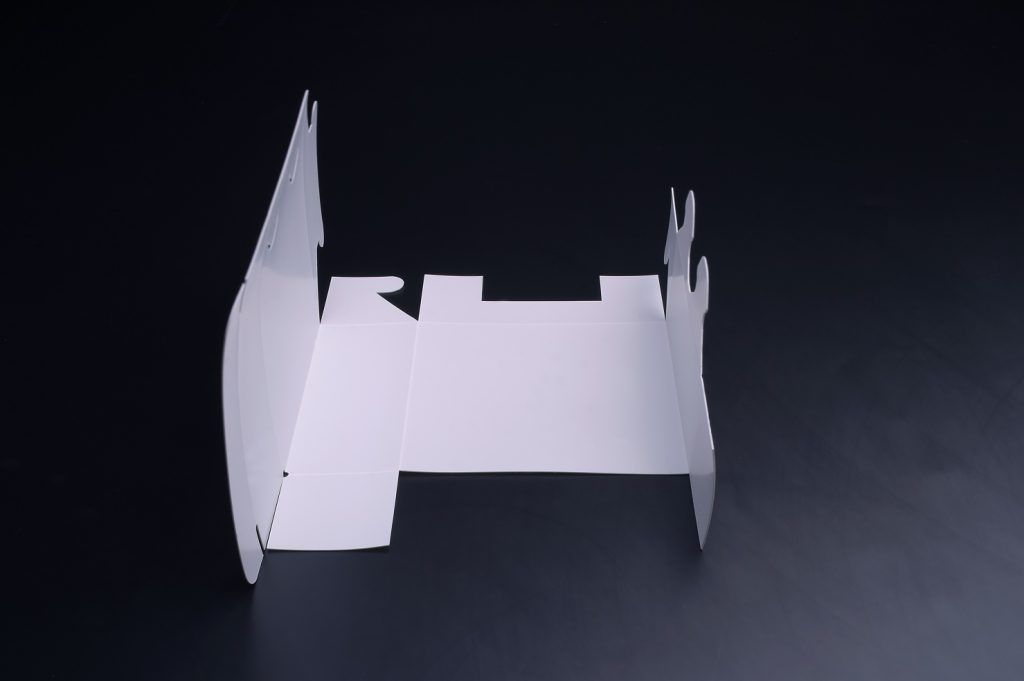

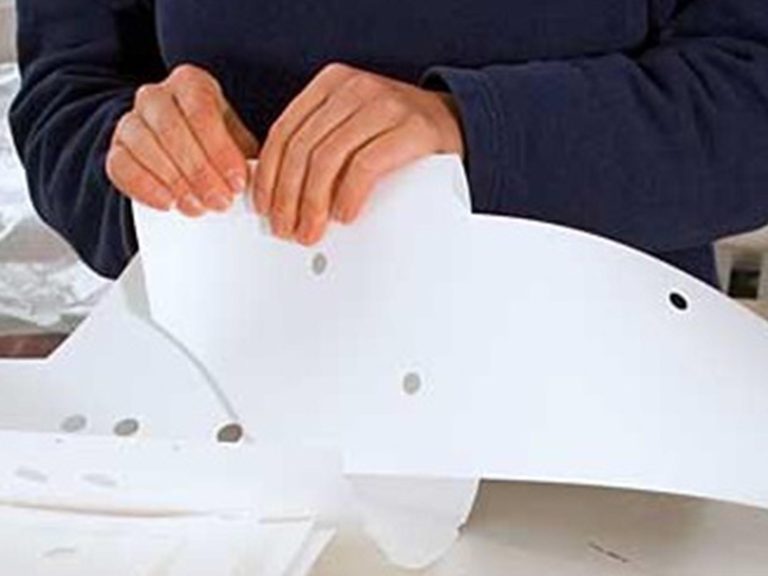

Bending/Folding:
- Manual bending after pre-embossed bend lines
- Manual or hydraulic folding presses
Other Processes:
- Printing and labeling

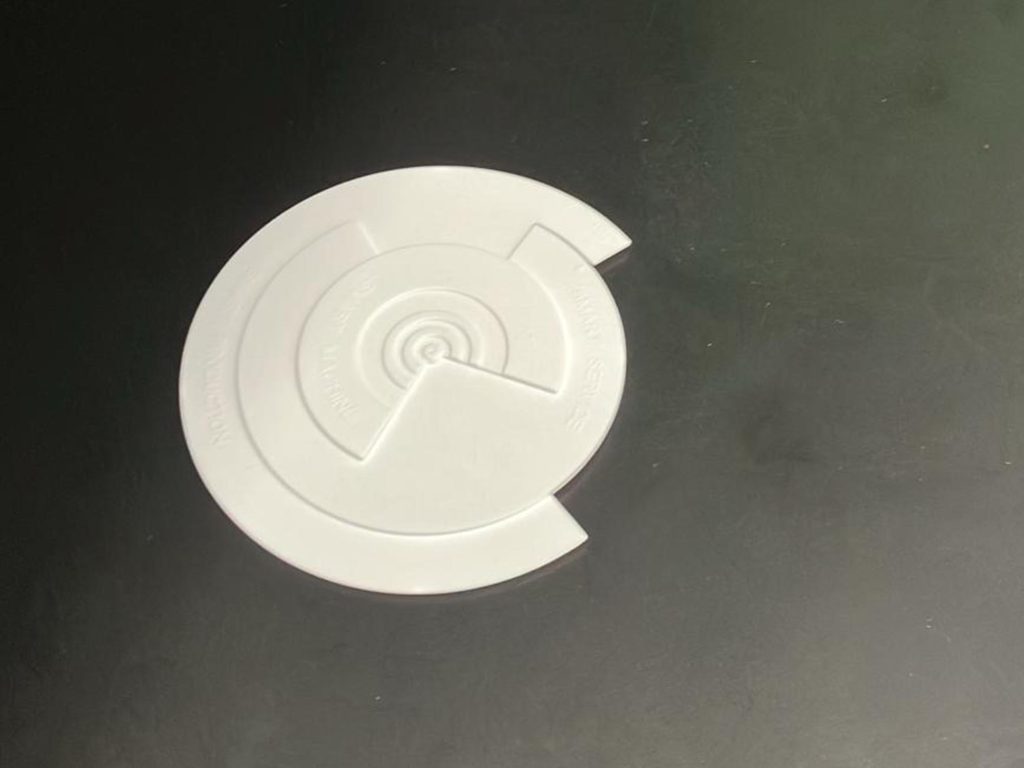

- Embossing of bend lines or logos
- Laminating with other materials such as copper

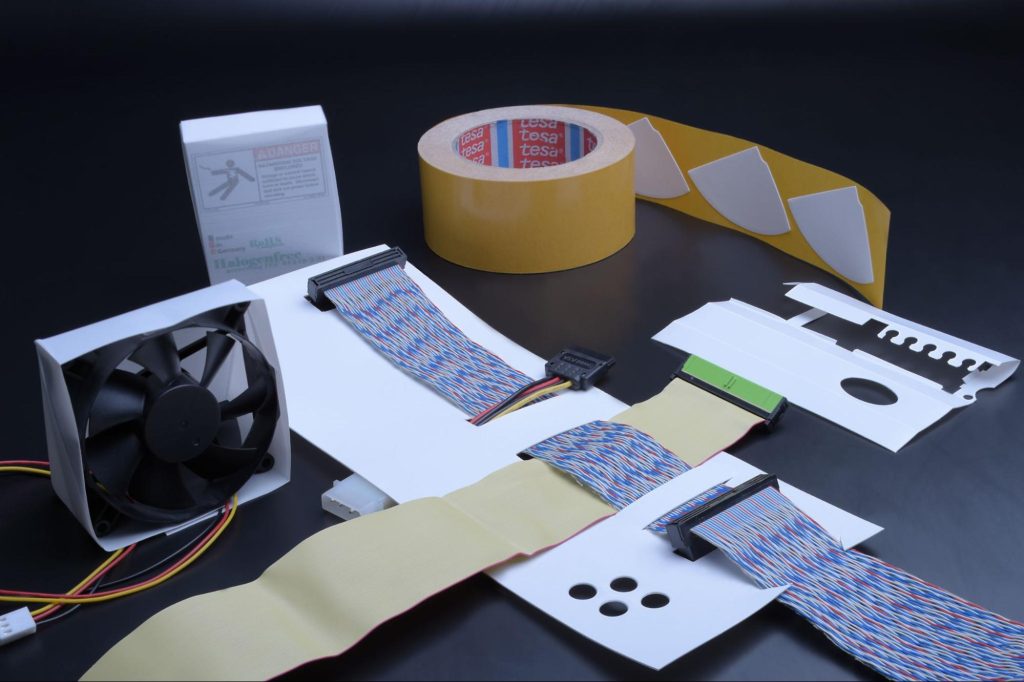

- Laminating with double-sided adhesive tape

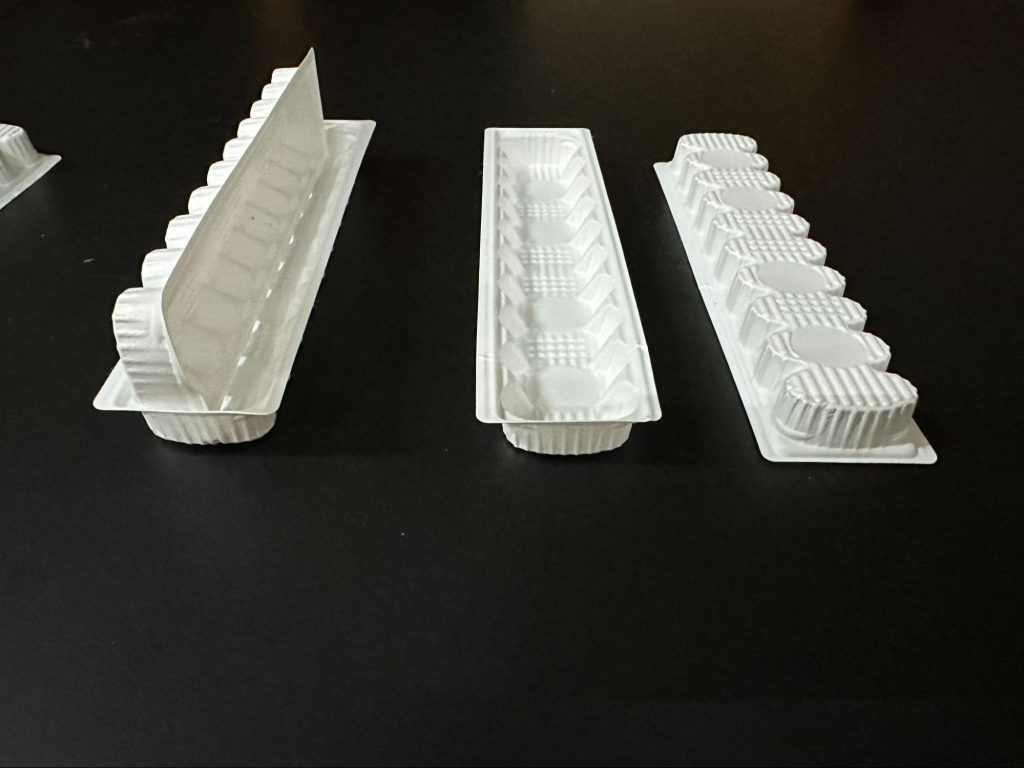

- Simple thermal forming
- Deep drawing with a machine
Injection molding - Welding (heat and ultrasonic)
Similar to cardboard processing, there are many ways to create mechanical closures and connections.
Summary
DURAVOLTA is a versatile, environmentally friendly polypropylene with outstanding technical properties and low price, , used in many industrial and technological applications. With its excellent price-performance ratio, it offers a powerful alternative to traditional materials.
